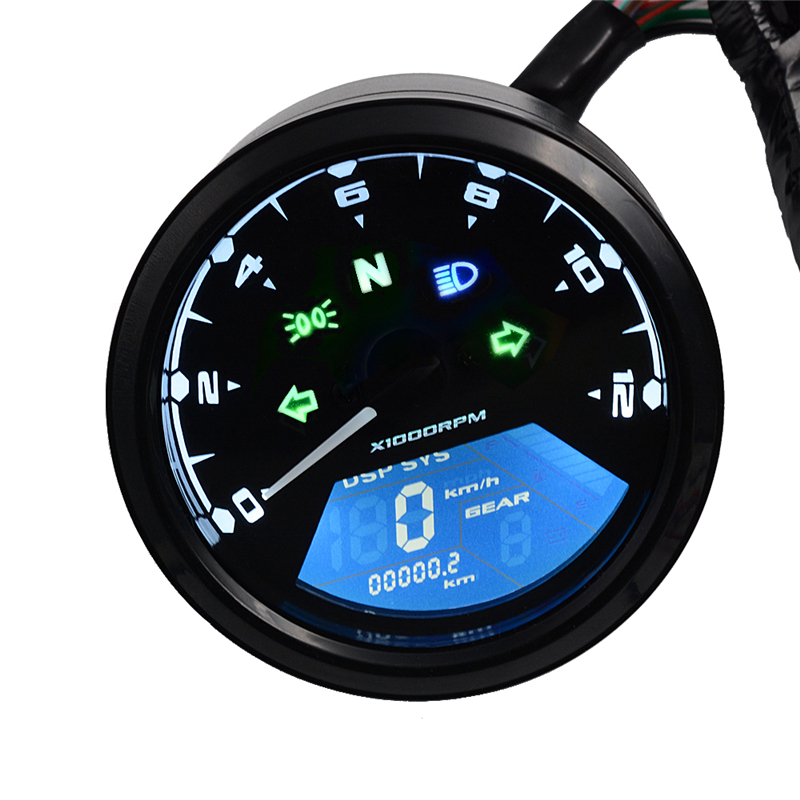

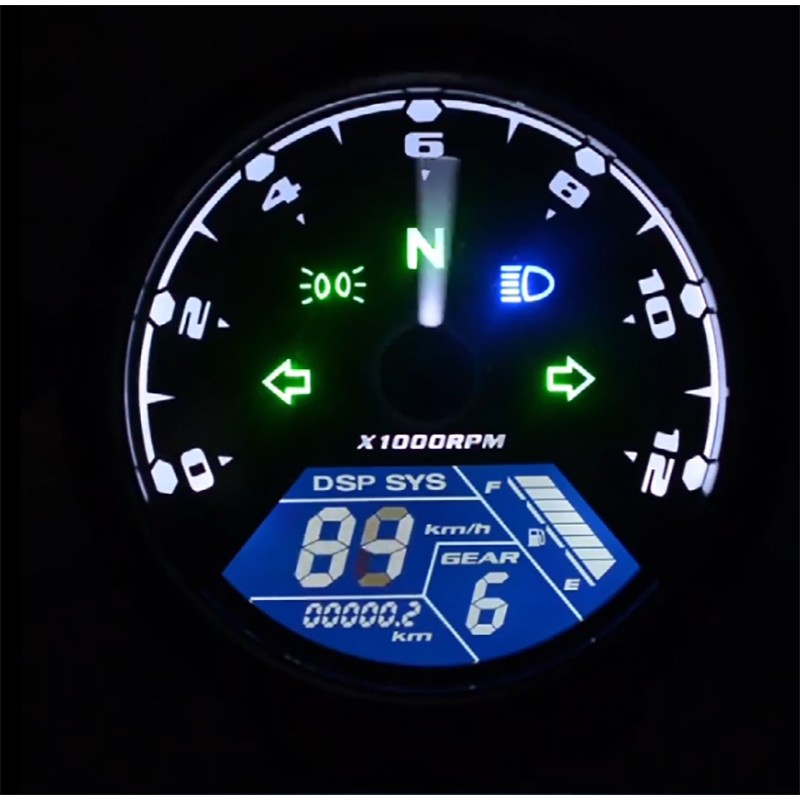

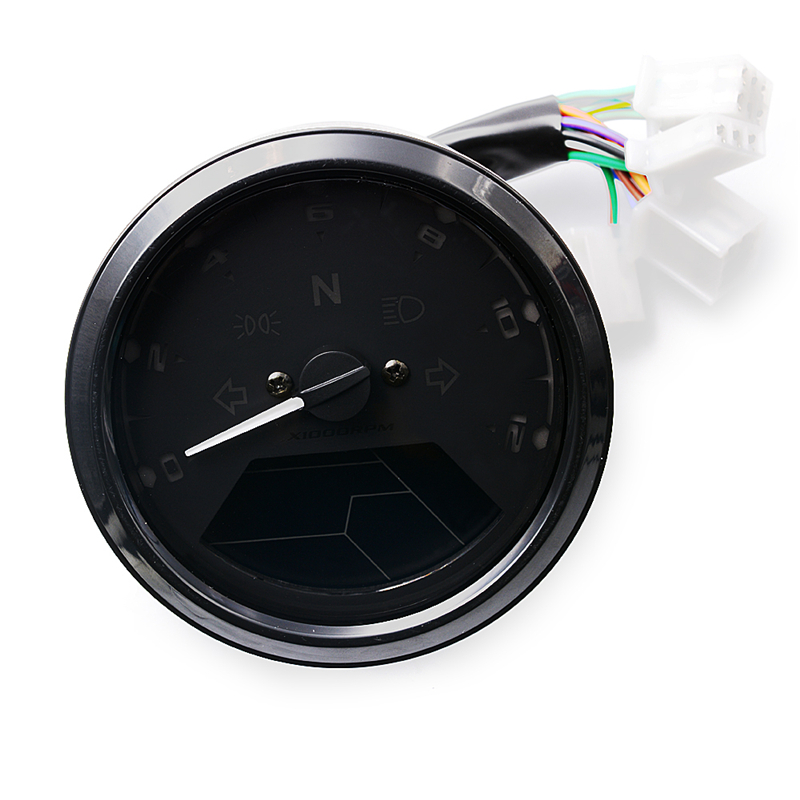

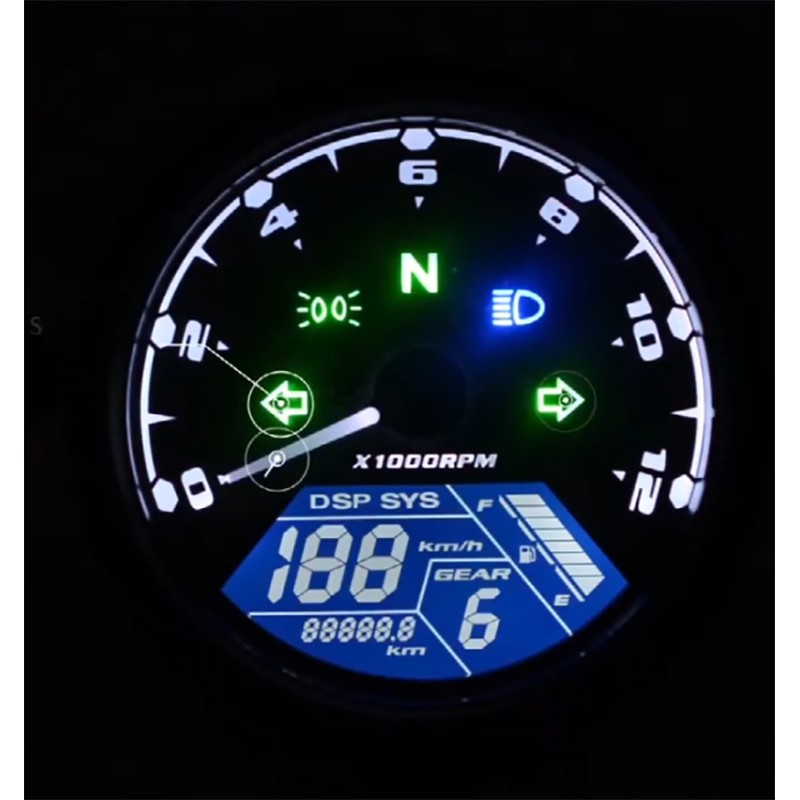

RP1140-1009B Universal Motorcycle Speedometer LCD Digital Tachometer Speedometer Cable
- Product Code: RP1140-1009B
- Availability: In Stock
- Tags: Speedometer LCD Digital Tachometer Speedometer Cable
SKU: RP1140-1009B
Product name: Motorcycle Speedometer LCD Digital Tachometer Speedometer Cable
Color: Black
Universal Digital Motorcycle Speed Meter Odometer Tachometer Gauge Dual Speed LCD Screen for 2-4 Cylinders
Description:
Working voltage 8-18V
Rated voltage DC 12V
Working temperature -20 - +70 Celsius
Storage temperature -30 - +80 Celsius
Digital display speed range 0-199km/h
Needle display rpm range 0-12000rpm
Digital display odo distance range 0-99999.9km
Gear indicator 1-6
Backlight Blue
Installation diameter 9cm
Height 5.3cm
Cable Length 12cm
Features:
Large anti -UV & Anti-g lare LCD screen
All-in-one design with digital signal processing system
Using chip technology for most of the components

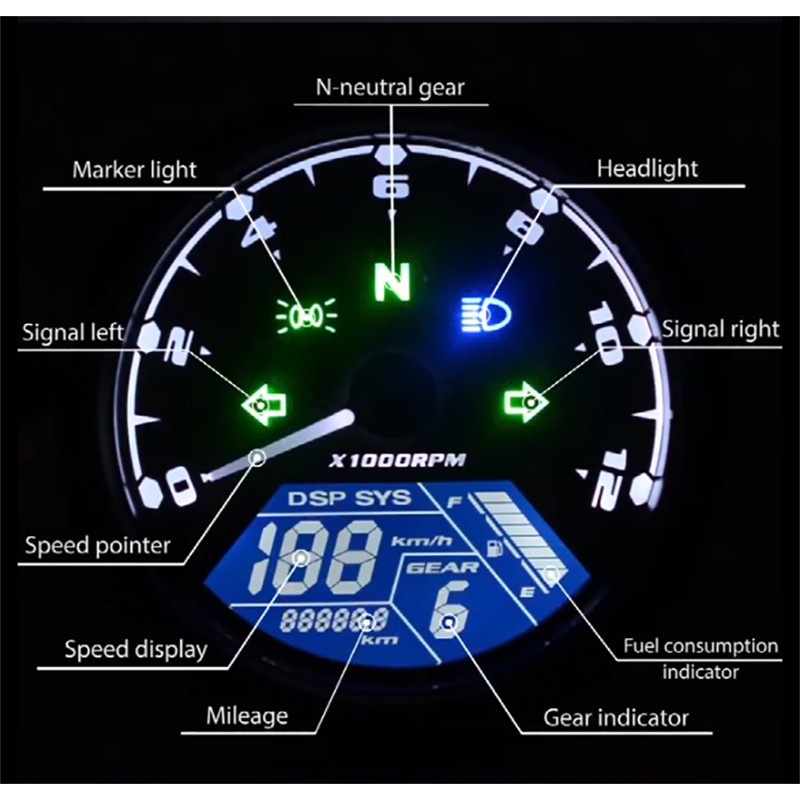

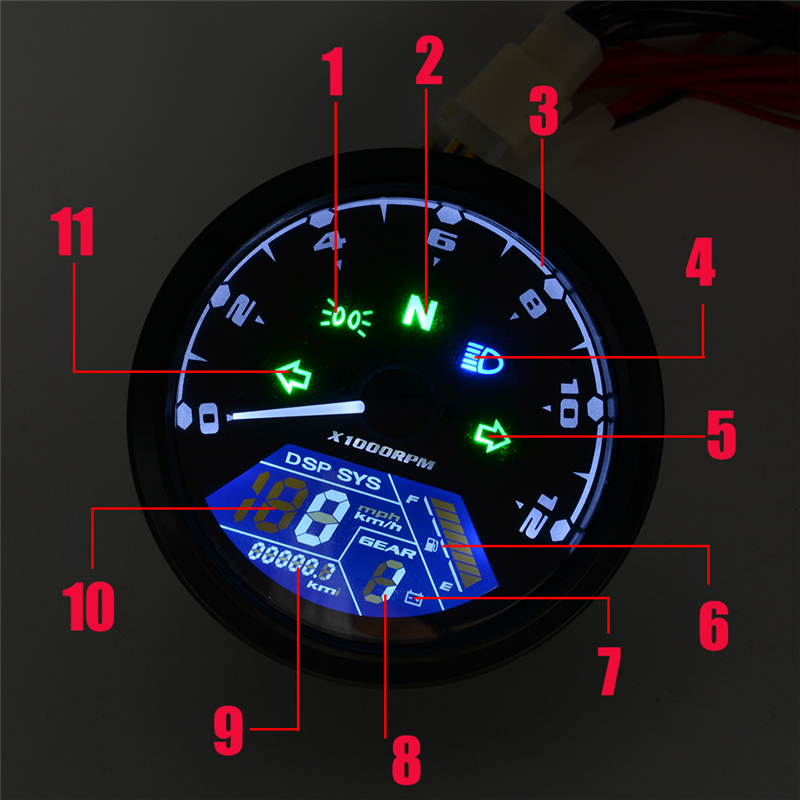

Multiple indicator functions as the L/R Turn Signal, High Beam, Position Lights, N Lights
High withstand voltage up to 100V
Waterproof & Anti-vibration
Fits for most motorcycle that is with 4 stroke, 2/ 4 Cylinders (default as 1 cylinder of the setting)
Function Knob Instruction:
1.Meter working voltage is 12V.
2.Short press the right button for shift between ODO&TRIP .
3.When the meter displayed TRIP, long press the button 3s to reset the TRIP meter.
4.When the meter displayed ODO, long press the button for shift between KM&MI.
5.Long press the button and power on ,keep 5s to get to the setting mode ,the perimeter bit flash, short press the button to modify the number ,No operation automatically move to the next item.
6.Negative control: left&right turn signal ,High beam ,
Positive control: Outline Marker Lamps.
7.The symbol flash when : voltage >15.0V & voltage < 11.9V;
8.The symbol does not display when: 12.0V<14.9v.
Wiring Instructions (from left to right)
Color:
Light Blue :Right signal
Red :Power+the line from electric lock
Blue White :Fuel level
White Brown:Position lamp
Black：Switch
Blue : High beam
Orange : Left signal
Green:Power
Yellow black:Pulsed coil(Engine speed)
Color: Green/Red Pink Blue/Red Green/Black Yellow/Red Yellow/White
Function: Gear N Gear 1 Gear2 Gear3 Gear4 Gear 5
Color: Green/White
Function:Gear 6
Color: Red/White Black/White Green
Function: Speed sensor+ Speed sensor signal Speed sensor
Package includes:
1X Speedometer (As The Picture)
| Product Attribute | |
| Color | Black |
| Fitment | Universal |
| Material | ABS Plastic |
| Type | Motorcycle Speedometer LCD Digital Tachometer Speedometer Cable |
| UNITS | Pcs |
