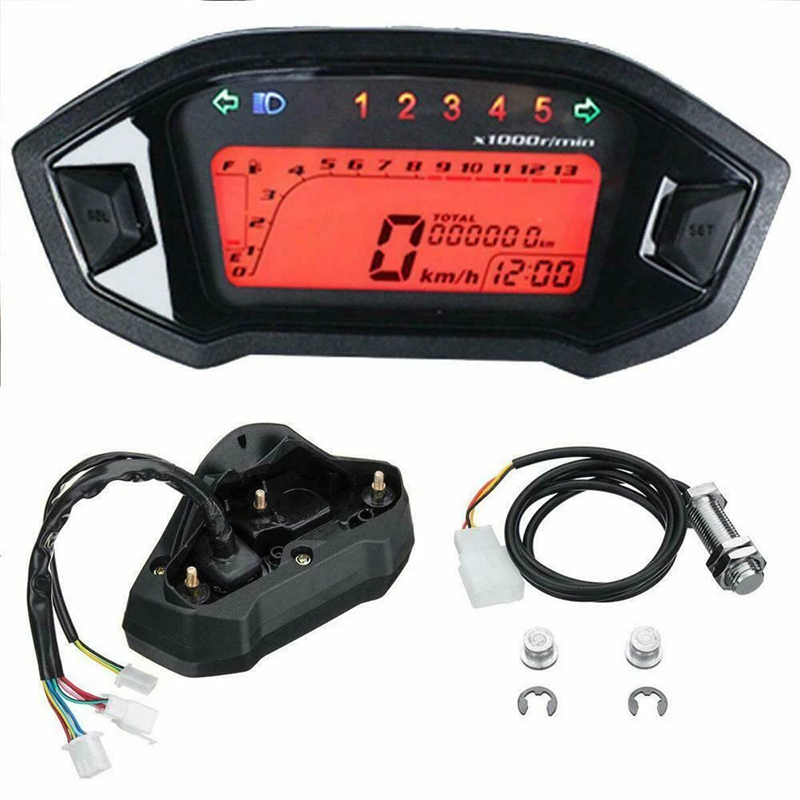

RP1140-1012B Universal Motorcycle speedometer digital SM12 Tachometer LCD

SKU:  RP1140-1012B

Product name: Motorcycle speedometer digital  SM12 Tachometer LCD

Color: Black

Brand new and high quality
Fitment : Universal fit for all motorcycles with DC 12V
Light blue: Turn right, 12V positive control Green / red: N file
Blue / Yellow: Speed signal Line pink: 1 file
Red: Battery positive Blue / red: 2 files
Blue: High beam, 12V positive control Green / black: 3 files
Green: Negative Yellow / Red: 4 files
Orange: left turn, 12V positive Yellow / white: 5 files
Blue and white: fuel signal line
Black: Positive

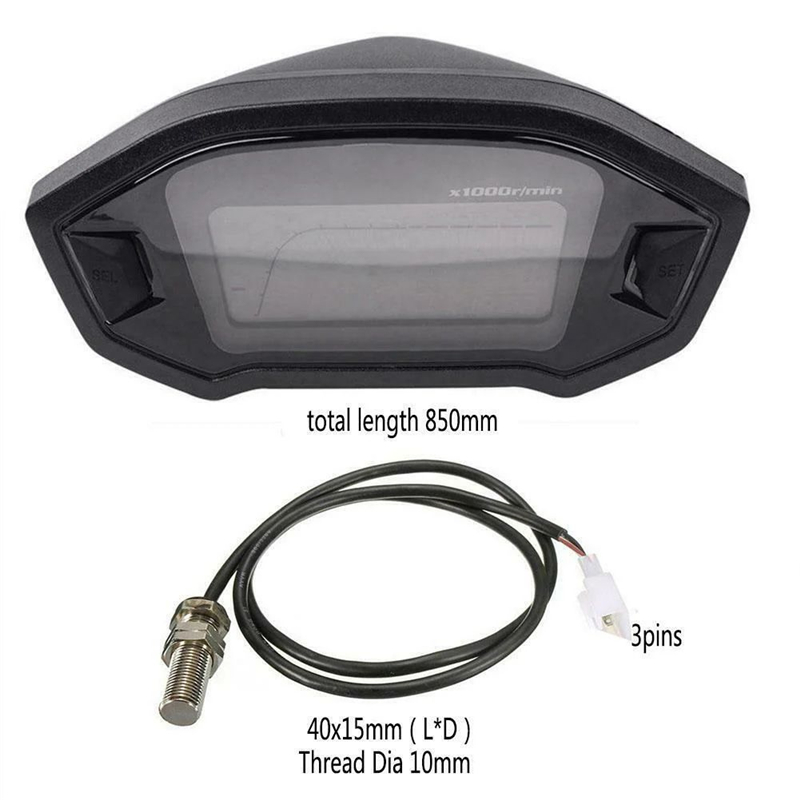

Yellow: Sensor positive
Green: Sensor negative
Black / white: sensor signal
【Working voltage】 10V-15V
【Speed calibration】 42.5Hz corresponds to 60KM / H
【Speed calibration】 166Hz corresponds to 10 * 1000r / min
【Fuel calibration】 E point 98Ω, F point 8Ω
【Voltage】 Below 11.3V Undervoltage symbol flashes, above 11.7V Undervoltage symbol is not displayed

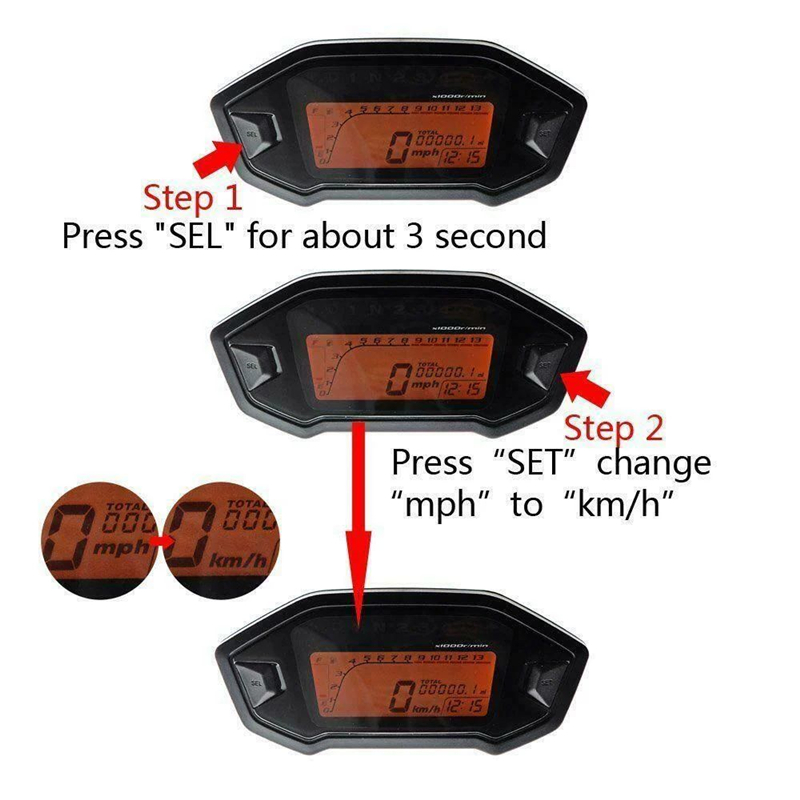

【LCD】 7-color backlight Short press the right button to switch (order: red, purple, pink green, white, blue, green, sky blue.) The default is red Press the left button, the total subtotal switch in the subtotal state, press and hold the right button for 3 seconds to subtotal reset.Long presses the left button speed flashes.Short right press the inch switch, and then press the left button to switch to Clock setting, hour bit blinking, short press left plus 1, and then press the left button minutes blinking, short press right plus 1, and then press the left button to save and exit.
